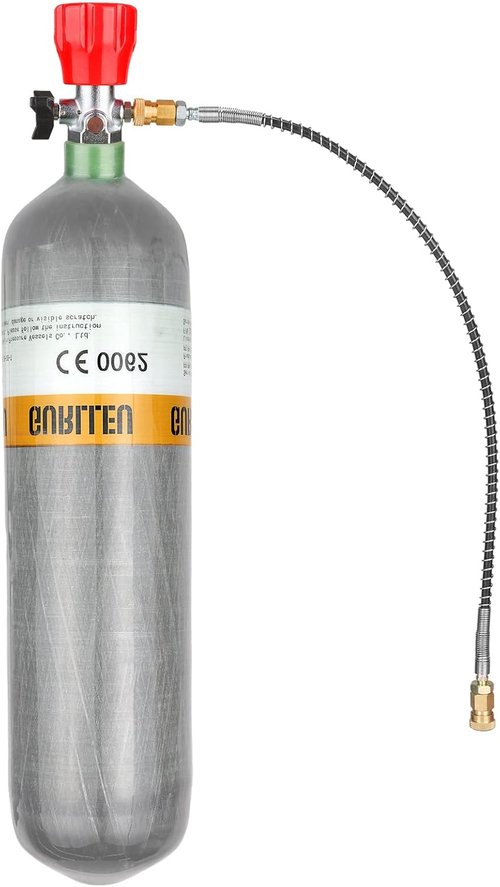

3L 4500psi Carbon Fiber Air Tank & Fill Station for PCP Paintball Scuba SCBA（Empty Bottle） (Red Gauge Tank Kits)
3L 4500psi Carbon Fiber Air Tank & Fill Station for PCP Paintball Scuba SCBA（Empty Bottle） (Red Gauge Tank Kits)
Couldn't load pickup availability
- carbon fiber
- Imported

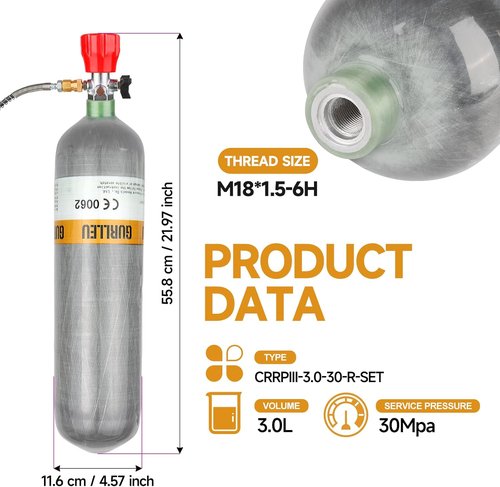

- Product Specification: 3L / 30 Cu.Ft capacity, 20-30 MPa / 3000-4500 PSI service pressure, CE certified, Not DOT ( Filling it by yourself ), M18x1.5 bottle screw thread size.

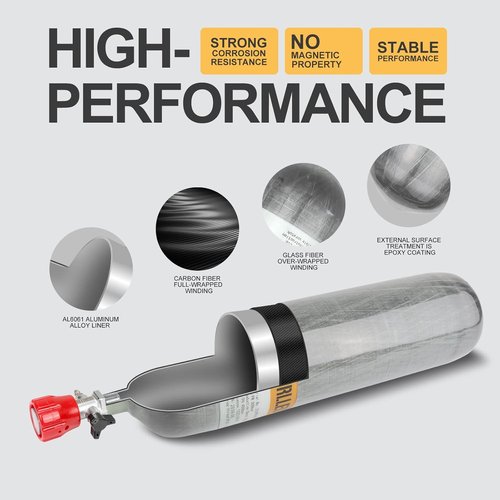

- Product Structure: Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.
- Product Testing Performance: One of the safety tests is the hydrostatic test pressure, for carbon fiber cylinders, it can reach 50Mpa. The other is the minimum burst pressure, which can reach 102Mpa for carbon fiber cylinders, can hold more gas under the same volume conditions.
- Product Advantage: Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years).
- Product Application: Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency etc. Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy, it can be used in various positive pressure breathing apparatus.

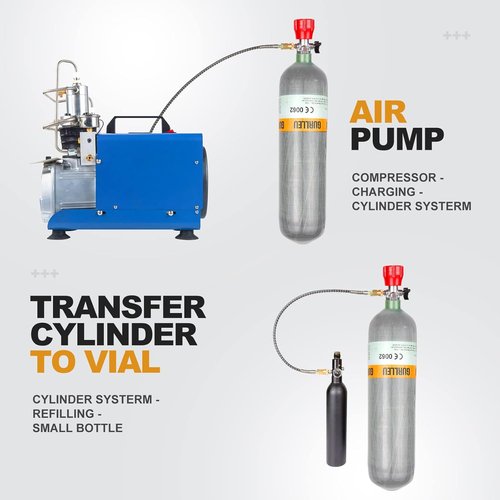

Charging System Set
Fill Station Assembly
Bottle Neck
Bottle Surface
Pressure Service
- Working Pressure: 30 Mpa / 4500 PSI
- Water Testing Pressure: 50 Mpa / 7500 PSI
- Burst Testing Pressure: 102 Mpa / 15300 PSI
Cylinder Structure
- Featured Imported AL-6061 lining
- Seamless design of filament winding
- Full-wrapped of carbon fiber and glass fiber

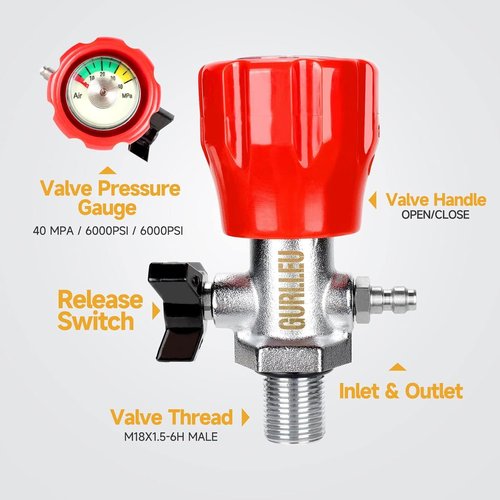

Valve Structure
- High pressure gas cylinder valve in line with standard.
- Exquisite workmanship
- Military quality, safe and reliable
Standard

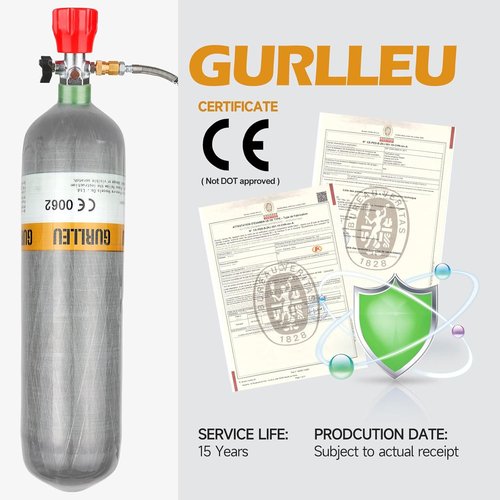

- CE and EN standards, but Not DOT.
Production Process
Advanced normative cyclic production
Standard ISO 9001 production process to ensure product quality and safety
Main Uses
Application
- It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.
- Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.
